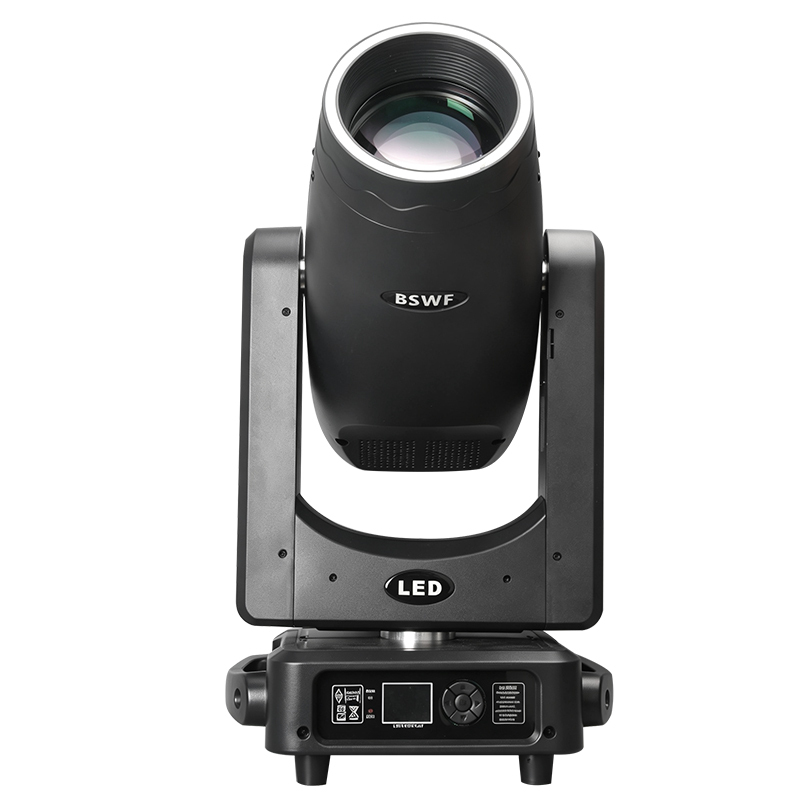

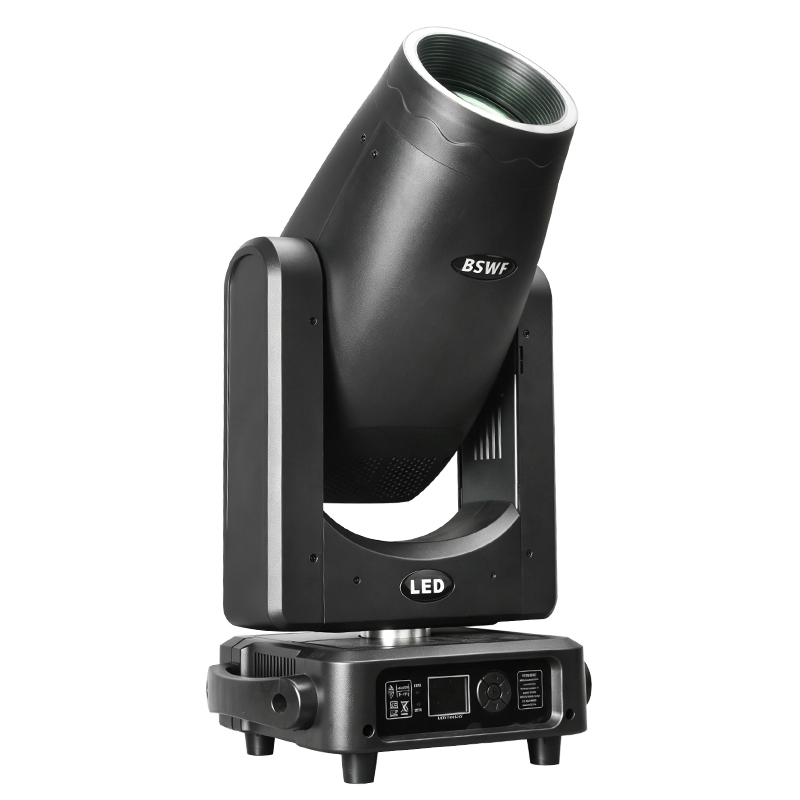

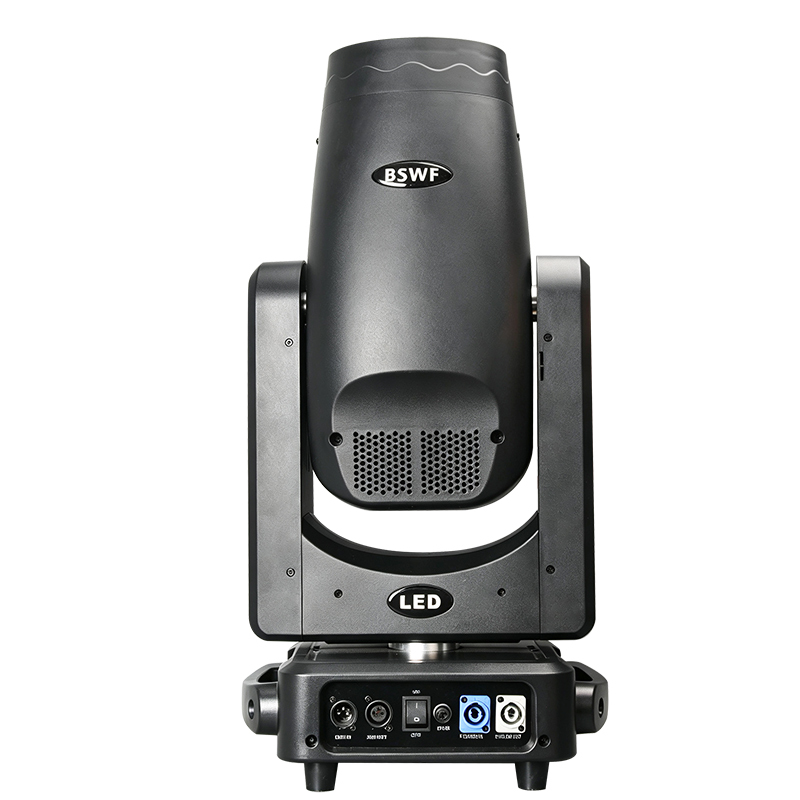

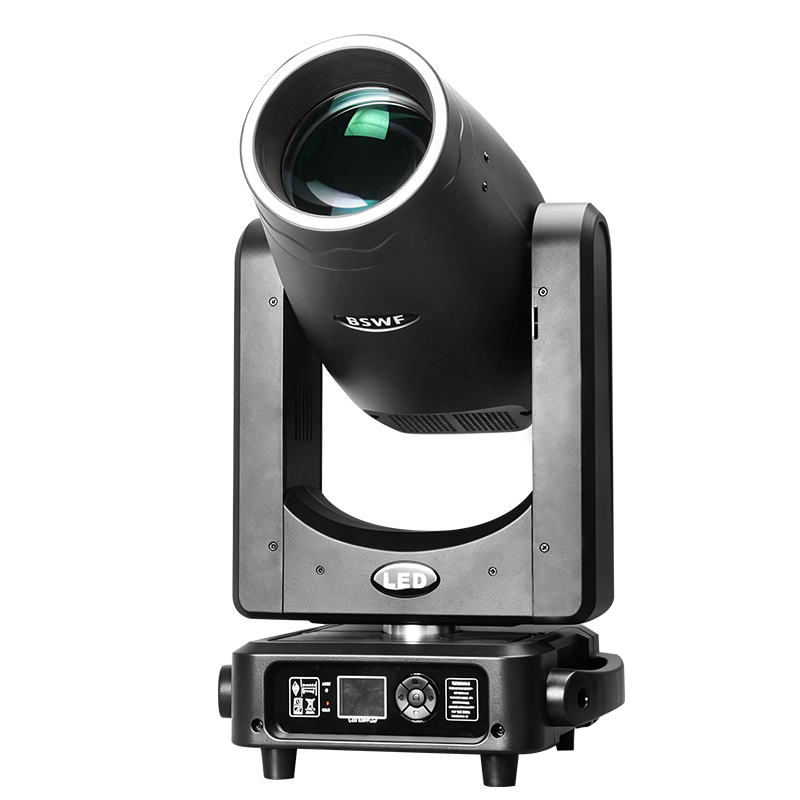

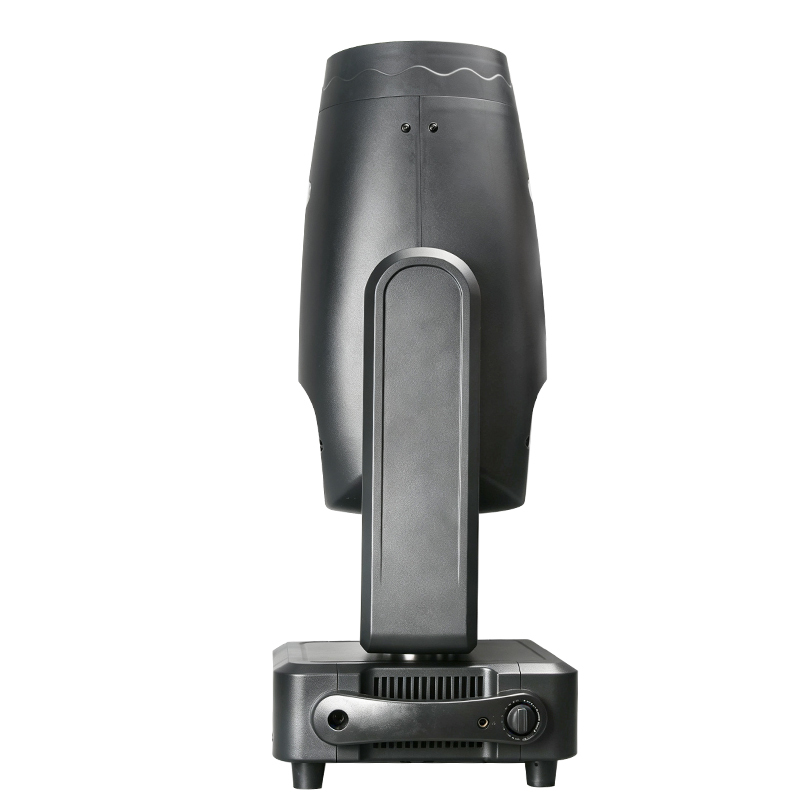

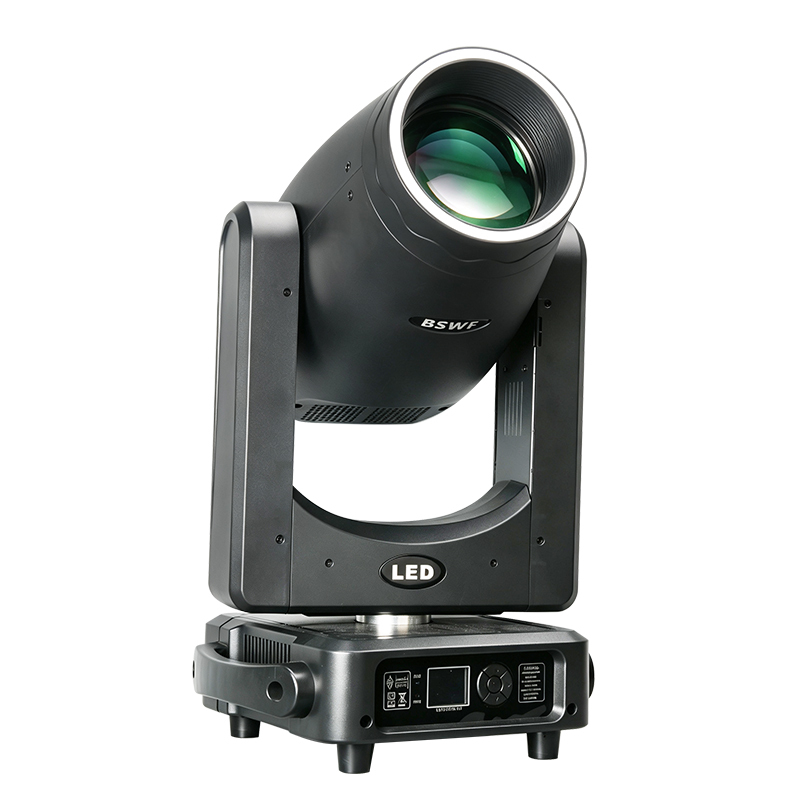

HUA XIA 750W LED Profile Moving Head Framing Cutting Light
This professional LED Profile Moving Head Framing Cutting Light is a premium all-in-one stage lighting fixture built for theatre, concert, live show, church and stage rental projects. Powered by 750W rated input with a high-performance 600W LED module, it delivers stable bright output with an ultra-long LED lifespan up to 20,000 hours. Adopting 7500K color temperature and CRI95 high color rendering index, this CMY CTO moving head light can reproduce rich, natural colors for professional stage performance.
This framing shaper cutting light is equipped with CMY infinite color mixing system and CTO linear color temperature adjustment, providing seamless and unlimited color transitions. It has dual independent color wheels: Color Wheel 1 includes 6 colors plus white, Color Wheel 2 features 3 colors plus white. It supports half-color effect, precise color slice positioning and bi-directional rotating rainbow effect to enrich your lighting design.
The fixture adopts dual gobo systems. The fixed gobo wheel carries 9 fixed gobo patterns + white light; the rotating gobo wheel comes with 5 pluggable rotating gobos + white light. Both gobo wheels support gobo shake and bi-direction rotation for dynamic projection effects. It is fitted with a 4-facet bi-directional rotatable prism with adjustable rotation speed to create stunning multi-beam visual effects.
The core advantage of this LED cutting profile moving head is its 4-blade framing shaper cutting system. Four controllable cutting blades form the framing module, and the whole cutting unit can rotate 0–90°. You can precisely control each cutting blade to generate custom arbitrary geometric beam shapes for theatre framing, stage outline projection and artistic lighting design.
It supports linear 0–100% focusing, beam angle linear zoom from 3° to 42°, and built-in frost filter to achieve soft wash effect. It features 0–100% linear dimming, 1–30Hz pulse strobe with optional random strobe effect. Pan 540° and Tilt 270° movement with 16-bit high precision scanning and automatic position reset & correction ensure smooth, stable and accurate beam positioning.
This DMX stage light has 34 international standard DMX512 channels and supports RDM bidirectional communication. Multiple control modes are available: DMX512, RDM, sound active, auto run, master-slave. With LCD display, operators can remotely change DMX address, factory reset and switch working modes directly from the lighting console. The intelligent energy-saving function will automatically turn off the LED light source when dimmer is fully closed to reduce power consumption and extend fixture service life.
Wide voltage input AC100V–240V, 50/60Hz makes this DMX512 RDM moving head light suitable for global markets. Dimension L345×W270×H665mm, net weight 17.4kg. Compact structure and reliable performance make it the ideal professional stage lighting equipment for theatres, concerts, live events, TV studios, wedding shows and stage rental companies.
