Product Description

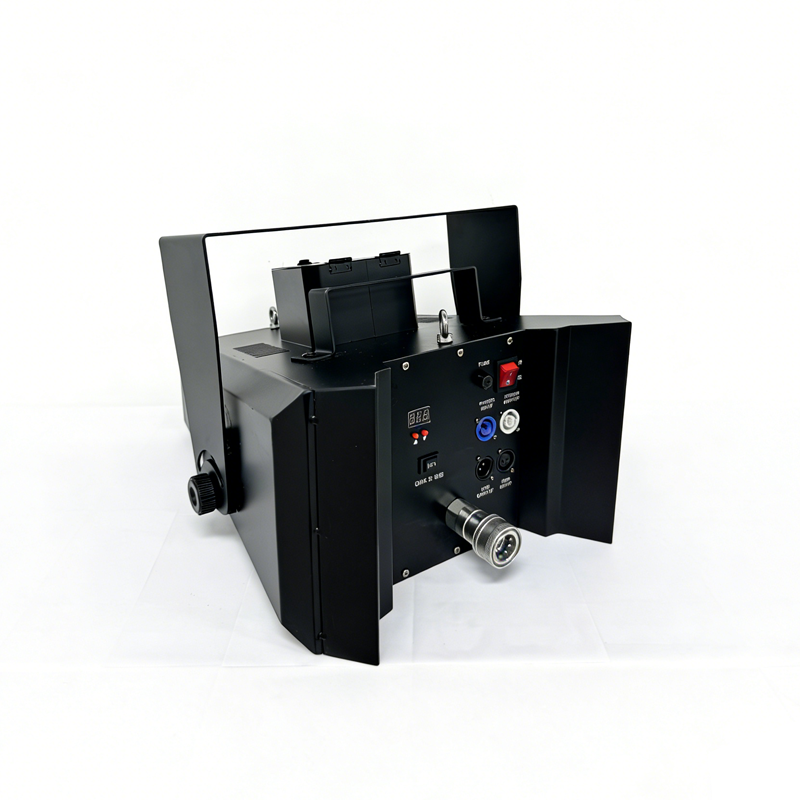

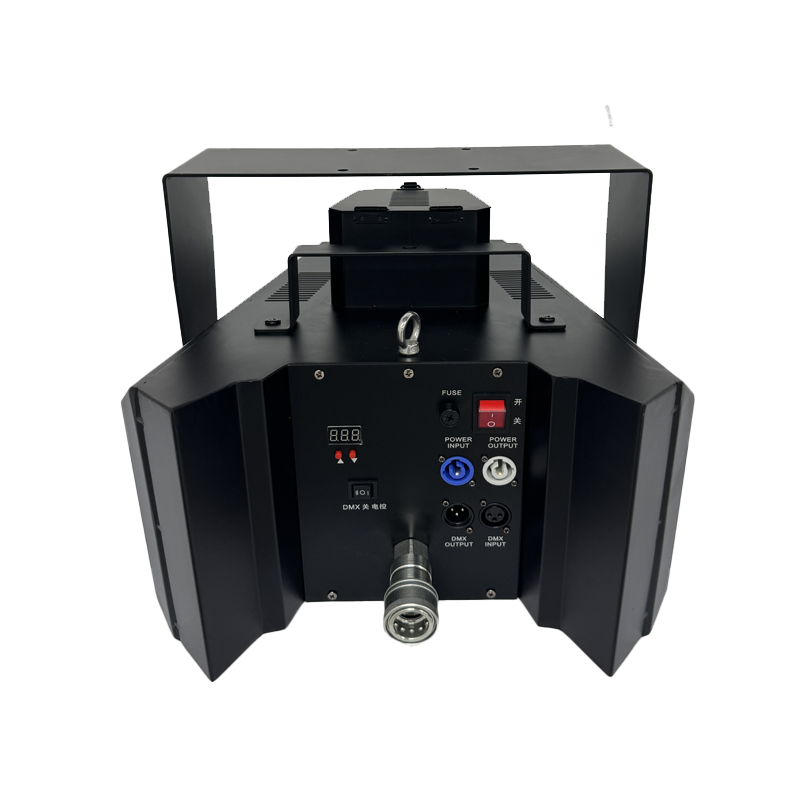

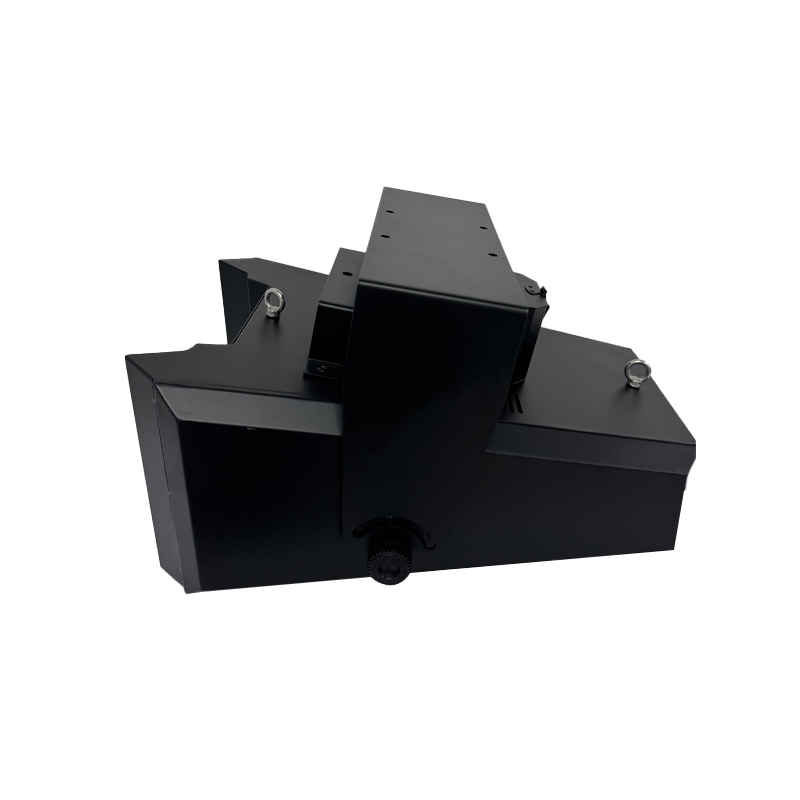

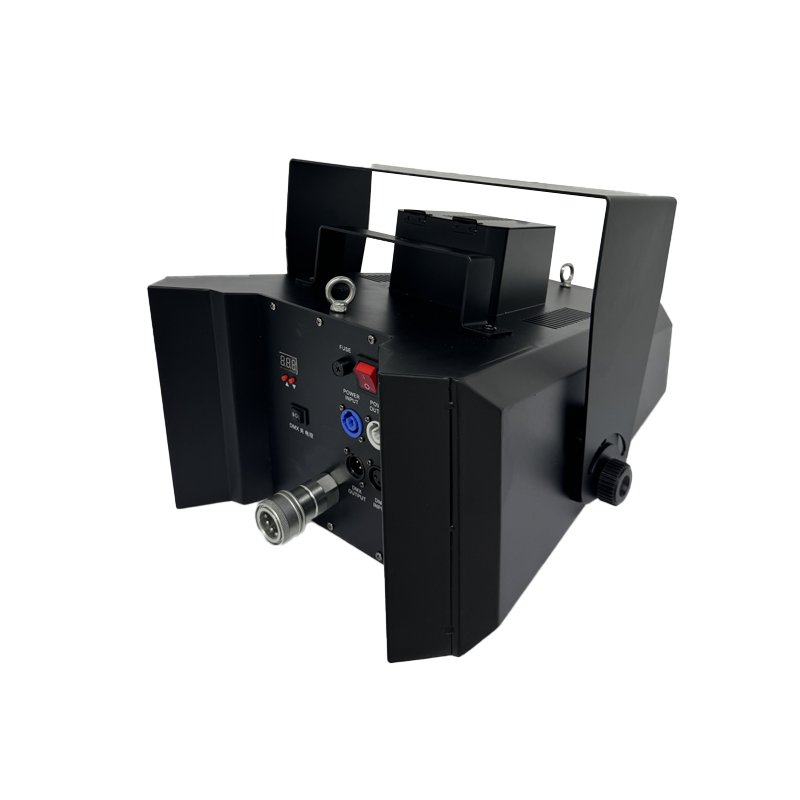

DG-C102 Single Head Blizzard confetti machine is a professional celebration stage effect equipment, widely used for concerts, wedding ceremonies, grand openings and festival events.
Equipped with concentrated high-speed pressure injection system, this blizzard machine can blast confetti up to 15 meters to create amazing confetti blizzard effect. It adopts precision pneumatic parts and special spiral joints to solve air leakage trouble and greatly prolong machine service life.
With anti-interference circuit design, the machine runs stable and reliable. Featured bend pressure boosting technology, it lowers CO2 consumption. The delivery pipeline can be extended up to 50 meters while maintaining powerful blasting effect.
It supports DMX512 and electric control modes for seamless linkage with stage control system. This machine runs on 120W power with wide voltage AC110-240V, compatible with most countries’ power supply. Powered by CO2 or nitrogen gas. Net weight only 7kg, portable for event rental companies.
Consumabies
Flame retardant glitter
Flame retardant colored paper
Installation Instructions
- To achieve the ideal blizzard effect: Upon receiving the new machine, unpack it and carefully inspect for any damage or missing accessories. If issues are found, contact the dealer.
- Connect the high-pressure hose to the CO₂ cylinder, and attach the other end’s quick-connect coupling directly to the machine. Open the CO₂ cylinder valve and power on the machine. For DMX512 control, set the switch to DMX; for power control, set it to POWER. To disconnect the high-pressure hose, first close the CO₂ cylinder’s main valve and release any remaining gas in the hose to prevent injury.
- CO₂ pressure varies with ambient temperature. Avoid outdoor use in direct sunlight if temperatures exceed 36°C.
- Use high-quality CO₂ gas.
- Secure the machine on a metal stand or by hanging it at a fixed angle to prevent recoil.
- Open the left and right rear covers and load an appropriate amount of confetti.
Connection Process
- Tilt the cylinder and elevate the rear by about 20 cm for optimal performance.
- Connect the filter’s high-pressure hose coupling to the cylinder valve.
- Attach the other end of the hose to the machine.
- After ensuring all connections are tightened, slowly open the cylinder valve.
- For power control, set the switch to POWER.
- For DMX512 control, set the switch to DMX.
Features
- Equipped with a concentrated high-pressure jet system, the machine can project up to 15 meters, delivering an exhilarating experience.
- Precision pneumatic components and specialized spiral couplings minimize gas leaks, significantly extending the equipment’s lifespan.
- Anti-interference circuit design ensures stable and reliable operation.
- Curved-path pressure-boosting technology reduces CO₂ consumption, allowing hose extensions up to 50 meters while maintaining (invalid~).
