3000W High Output RGB LED Fog Machine DMX512

Product Description

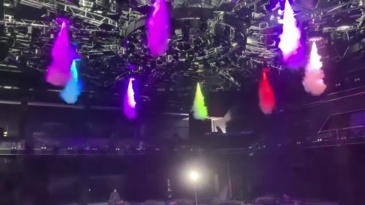

This professional 3000W RGB LED fog machine combines smoke and colorful LED lighting effects in one unit, widely used for wedding ceremonies, parties, disco bars, concerts and stage events.

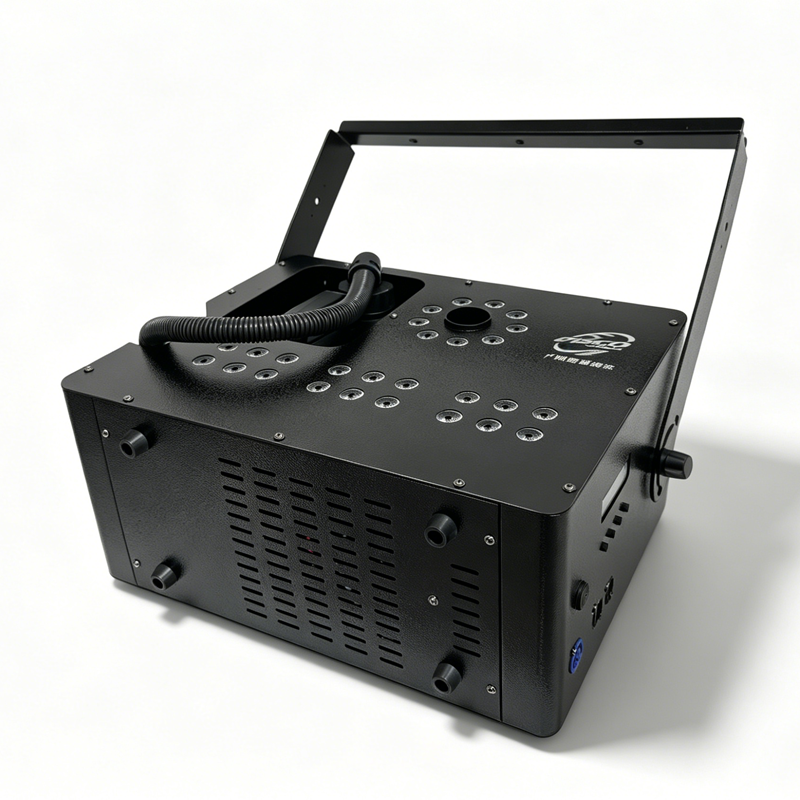

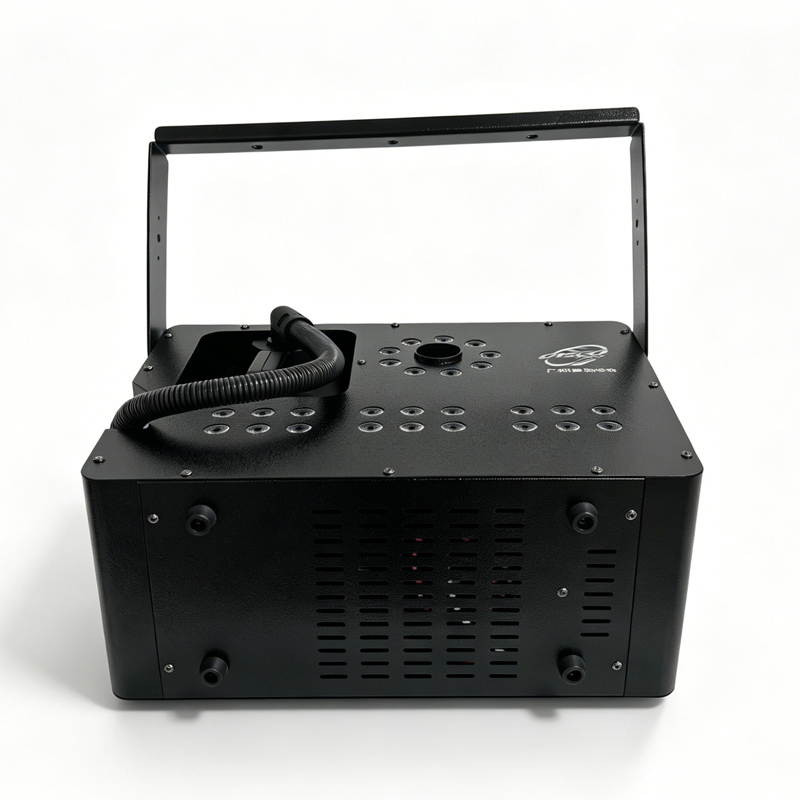

Powered by 3000W heating system, it can generate smoke volume up to 70000cuft/min with 8-10 meters spray distance. Built with 26 pieces 3W RGB LED lamps, it can produce rich RGB color lighting to match smoke for amazing visual scenes.
It only takes 5 minutes to finish preheating. The 3L fuel tank supports continuous performance, fuel consumption is 2.5min/L at maximum smoke output and spray duration reaches 7 seconds.
Support wireless remote control for simple operation, and DMX512 signal with 8 DMX channels to connect with professional stage controller. 15A/250V safety fuse protects the machine during operation. Compact body with net weight 15kg, easy to carry and set up for event rental companies.

 Consumabies

Quick-dispersing fog fluid

Product Parameters

Operating Voltage: AC220V-240V 50/60HZ

Current Limiting Fuse: 15A/250V

Power: 3000W

LED Power: 26*3W

LED Color: RGB

Smoke Output: 70000cuft/min

Warm-up Time: 5Min

Fuel Consumption: 2.5min/L (maximum smoke output)

Spray Duration: 7S

Maximum Spray Distance: 8-10M

Fuel Tank Capacity: 3L

Support: Wireless Remote, DMX512

DMX Channels: 8

Net Weight: 15KG

Gross Weight: 16.5KG

Dimensions: 425*193*509mm

Carton Dimensions: 480*385*310mm

DMX Channel Table

DMX Channel Functions:

1. Smoke spray: 0~9 stop, 10~255 adjust smoke intensity.
2. LED overall brightness: 0~9 off, 10~255 adjust brightness.
3. Internal LED red brightness: 0~9 off, 10~255 adjust brightness.
4. Internal LED green brightness: 0~9 off, 10~255 adjust brightness.
5. Internal LED blue brightness: 0~9 off, 10~255 adjust brightness.
6. External LED red brightness: 0~9 off, 10~255 adjust brightness.
7. External LED green brightness: 0~9 off, 10~255 adjust brightness.
8. External LED blue brightness: 0~9 off, 10~255 adjust brightness.
9. Color fade: 0~9 inactive, 10~255 faster fade (channels 2~8 inactive).
10. Color jump: 0~9 inactive, 10~255 faster jump (channels 2~9 inactive).
11. Strobe: 0~9 inactive, 10~255 faster strobe.

Menu Display Instructions

Ready FOG – Warm-up complete, machine ready for smoke.

Warming xx S – Heating in progress, countdown xxS.

Interval Set xx – Interval time setting.

Duration Set xx – Spray duration setting.

DMX512Set xxx – DMX address code setting.

Volume Set xxx – Smoke output intensity setting.

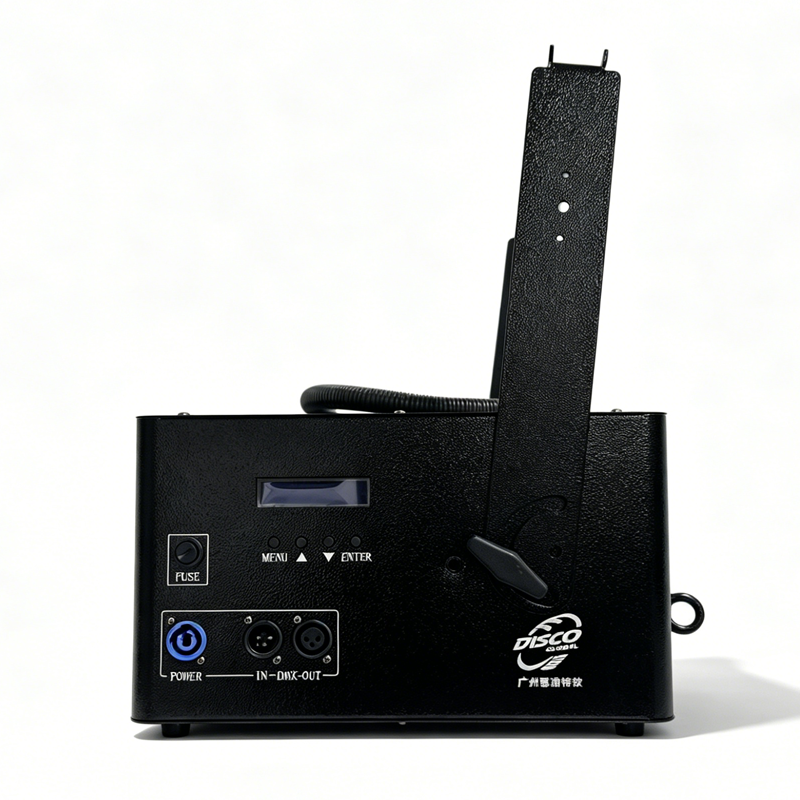

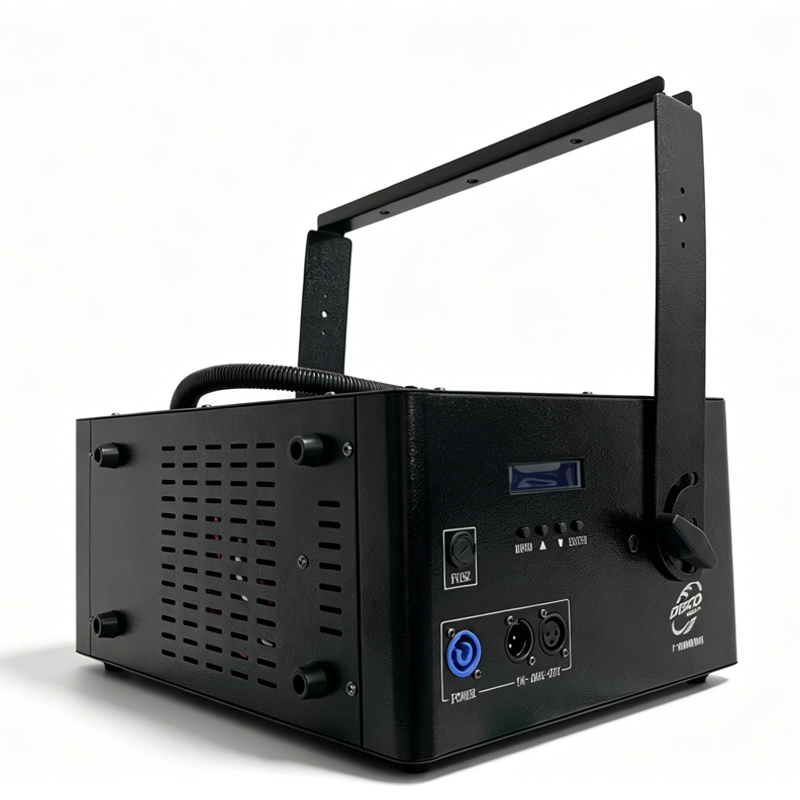

Button Functions

Function – Menu page toggle.

UP – Increase value.

DOWN – Decrease value.

Timer – Timer start/stop.

Volume – Output start/stop smoke.

Manual – Manual trigger for smoke.

Oil-Free Protection Instructions

(1) If the fuel tank is empty, the machine detects "NOLIQUID" within 20s and stops the oil pump.

(2) Three methods to exit oil-free protection mode:

(3) Power off then on to resume normal operation.

(4) Use DMX console: Pull DMX Channel 1 (if machine address is 1) to 0, then push to 255 to exit protection.

(5) Hold the manual button for ~10s to prime oil and resume operation.
