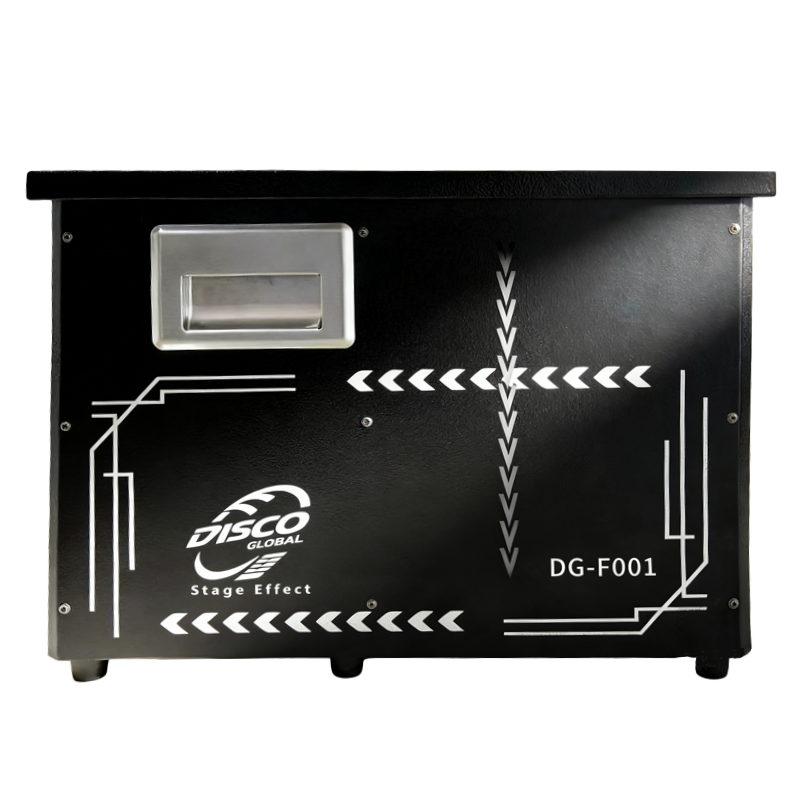

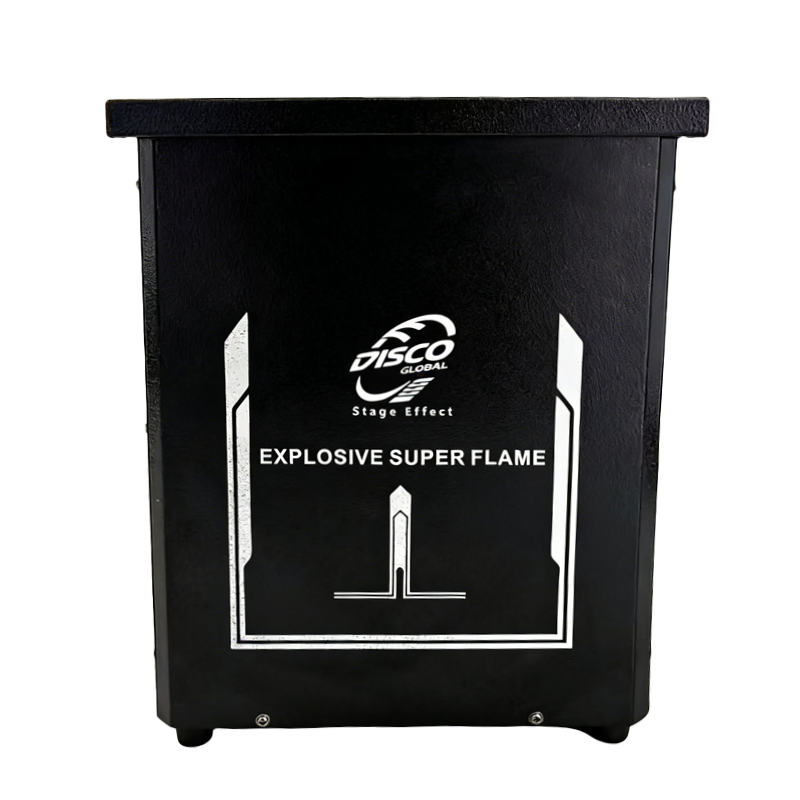

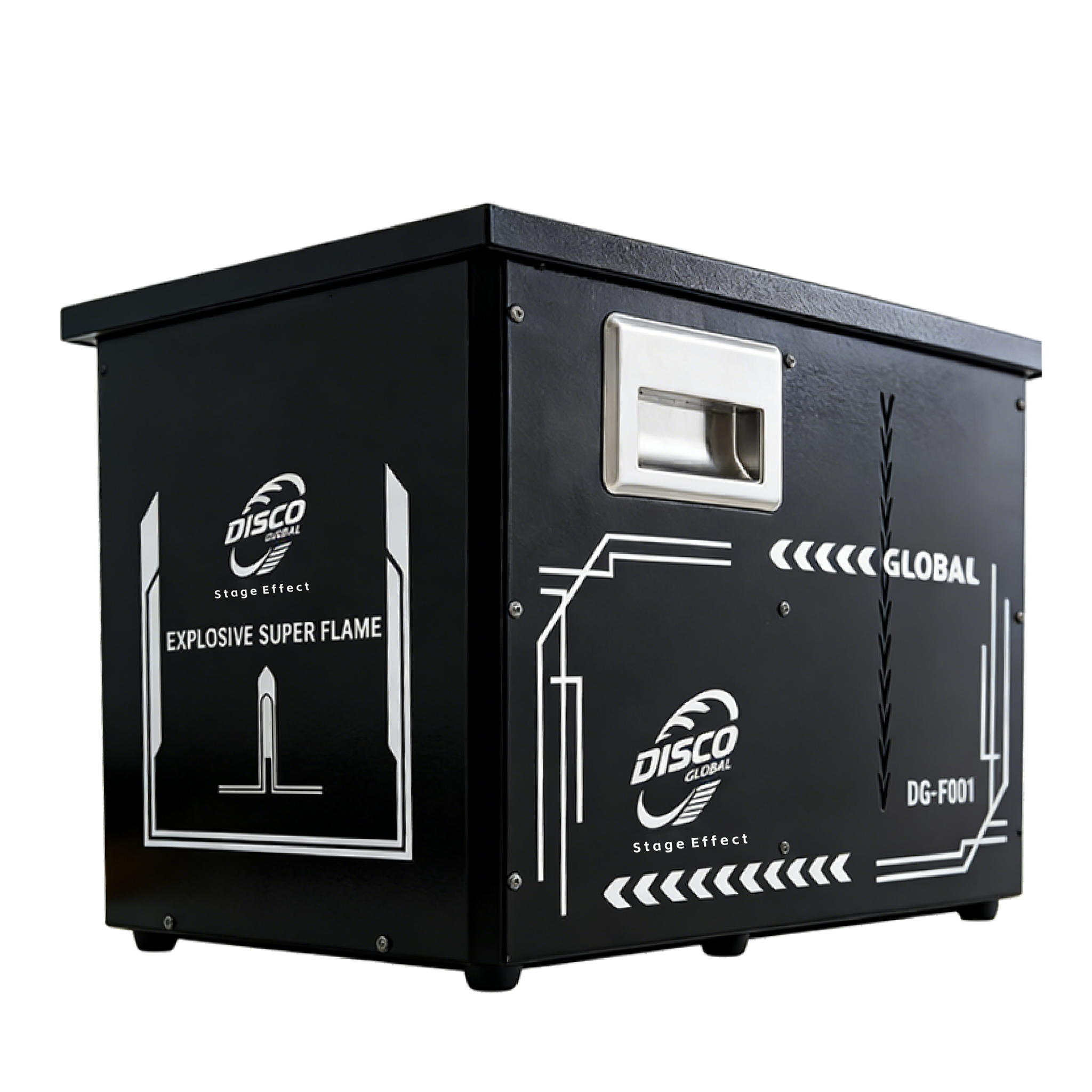

DG-F001 Outdoor Waterproof Flame Machine 8-10M Jet Height

Product Description

DG-F001 Waterproof Super Flame Machine is a professional outdoor stage flame effect equipment with IP56 waterproof rating, specially designed for outdoor events, music festivals and large-scale performances.
It adopts 350W power system, the flame jet height can reach 8 to 10 meters with vertical upward spraying angle. It supports two fuel options: isopropanol and isoparaffin stage special fuel.
Comes with 10L large fuel tank to support long-time continuous performance. Dual DMX interface makes it easy for cascade connection and simplifies on-site cable arrangement. Wide voltage AC110-240V design can adapt to power grids in different countries.
IP56 waterproof protection enables the machine to work normally under light rainy weather. Solid construction guarantees stable and safe operation for outdoor scenarios. It is widely used in outdoor concerts, music festivals, theme parks and grand opening celebration shows.

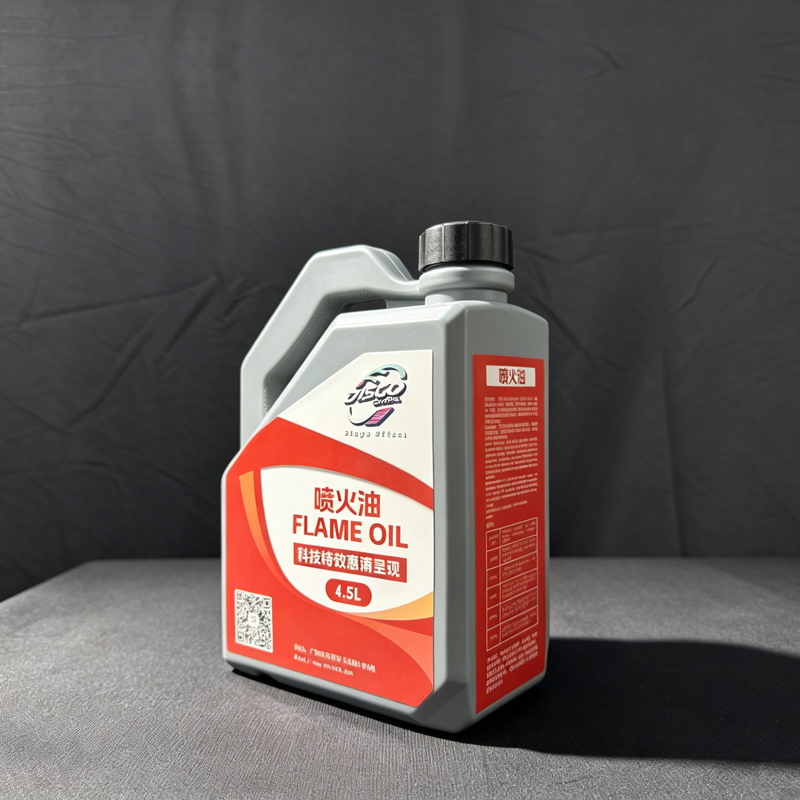

Use consumables

Usage Scenarios

A liquid-fuel direct-injection flame effect device developed for domestic and international market demands. Its main features include using liquid fuel for prolonged flame duration, elegant flame shape, and strong explosive force, differing from traditional direct-injection flame machines that mostly use gas fuel. Suitable for indoor or outdoor use, especially for large-scale performances and opening ceremonies.

Advantages & Features

1. Equipped with fuel-level control. When the interface displays "EMPTY," turn off the power and check the fuel tank.
2. Liquid-fuel direct injection, flame height up to 5-8 meters.
3. Ultra-compact fuel pumping system, portable design.
4. Built-in fixed fuel tank (5L capacity), no external piping required. Direct fuel addition prevents leakage.

6. Standard DMX512 signal control, compatible with any international DMX512 console.

7. Waterproof connectors for reliable quality. Resistant to light rain but not submersion.

Pre-Use Notes

1. This is an open-flame product. Install in a 3M-diameter, 13M-high area free of flammable materials.
2. Position the machine with the nozzle facing upward.

Operating Instructions

1. Open the chassis.
2. Insert the fuel bottle and add flame oil.
3. Connect to power (verify voltage).
4. Link the machine to the controller via signal cable, then debug the address code (must match the controller channel). Uses DMX512 protocol:

- DMX mode: Controlled by DMX512.

- OFF mode: Stops operation.

DMX Control Channel Table

Channel 1 (103-120): Flame safety switch

Channel 2 (200-255): Fireball

Channel 3 (200-255): Flame pillar

Note: Limit flame duration to ≤10 seconds. Real flames generate heat; prolonged use may damage internal components. Use professional flame oil to extend lifespan and reduce errors.
